Manual Chain Winder for Smoke Vent Window
A fully mechanical, hand-cranked chain window opener for AOV smoke ventilation and everyday natural ventilation. It provides dependable window operation without electricity, including during power failures.
No electricity · Gear self-locking · High-strength telescopic chain.
Reliable manual opening when electrical power is unavailable.
Turning the hand crank drives a precision internal gear set, extending or retracting the telescopic chain to open and close the smoke vent window. The optimized gear ratio provides smooth, labor-saving operation.
- Fully mechanical hand-crank operation
- Gear self-locking at intermediate opening positions
- Smooth, labor-saving transmission
- High-strength alloy gear structure
- Thickened manganese-steel telescopic chain
- No electrical components or wiring
- Compact installation and low routine maintenance
Hand crank, precision gears and self-locking chain drive.
Labor-saving transmission
An optimized gear ratio converts hand-crank rotation into steady chain movement for controlled window opening and closing.
Stable self-locking
The gear self-locking structure holds the window at the selected opening position against normal wind pressure and gravity.
Durable mechanical structure
Alloy gears and a thickened manganese-steel chain provide tensile strength, wear resistance and dependable long-term use.
Manual chain winder specifications
Select the final configuration according to window type, sash size and weight, required opening distance, crank location and installation geometry.
Request Datasheet| Product type | Manual chain winder / hand-cranked chain window opener |
|---|---|
| Power requirement | None — fully mechanical operation |
| Operating method | Rotating hand crank |
| Transmission | Precision gear set and telescopic chain |
| Position holding | Built-in gear self-locking structure |
| Gear material | High-strength alloy gear structure |
| Chain material | Thickened manganese steel |
| Compatible windows | Top-hung, bottom-hung and side-hung smoke vent windows; suitable roof skylights |
| Primary functions | Manual smoke exhaust and daily natural ventilation |
| Installation | Compact integrated structure with straightforward mounting |
| Maintenance | Low routine maintenance; no electrical servicing |
| Typical systems | AOV / SHEV smoke and heat exhaust ventilation |
Confirm chain travel, operating capacity, mounting brackets, crank position, installation dimensions and selected-model compliance before specification or purchase.

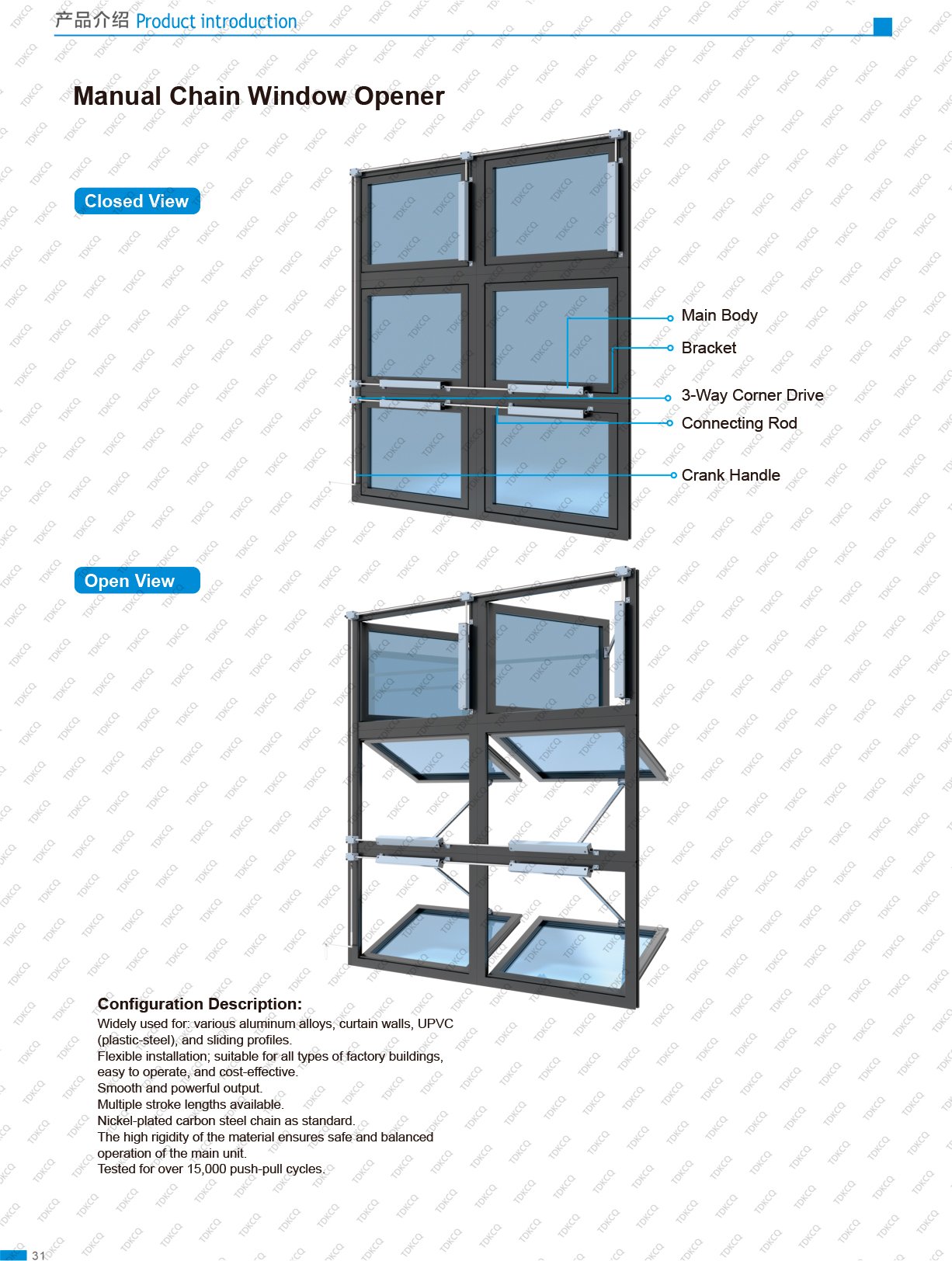

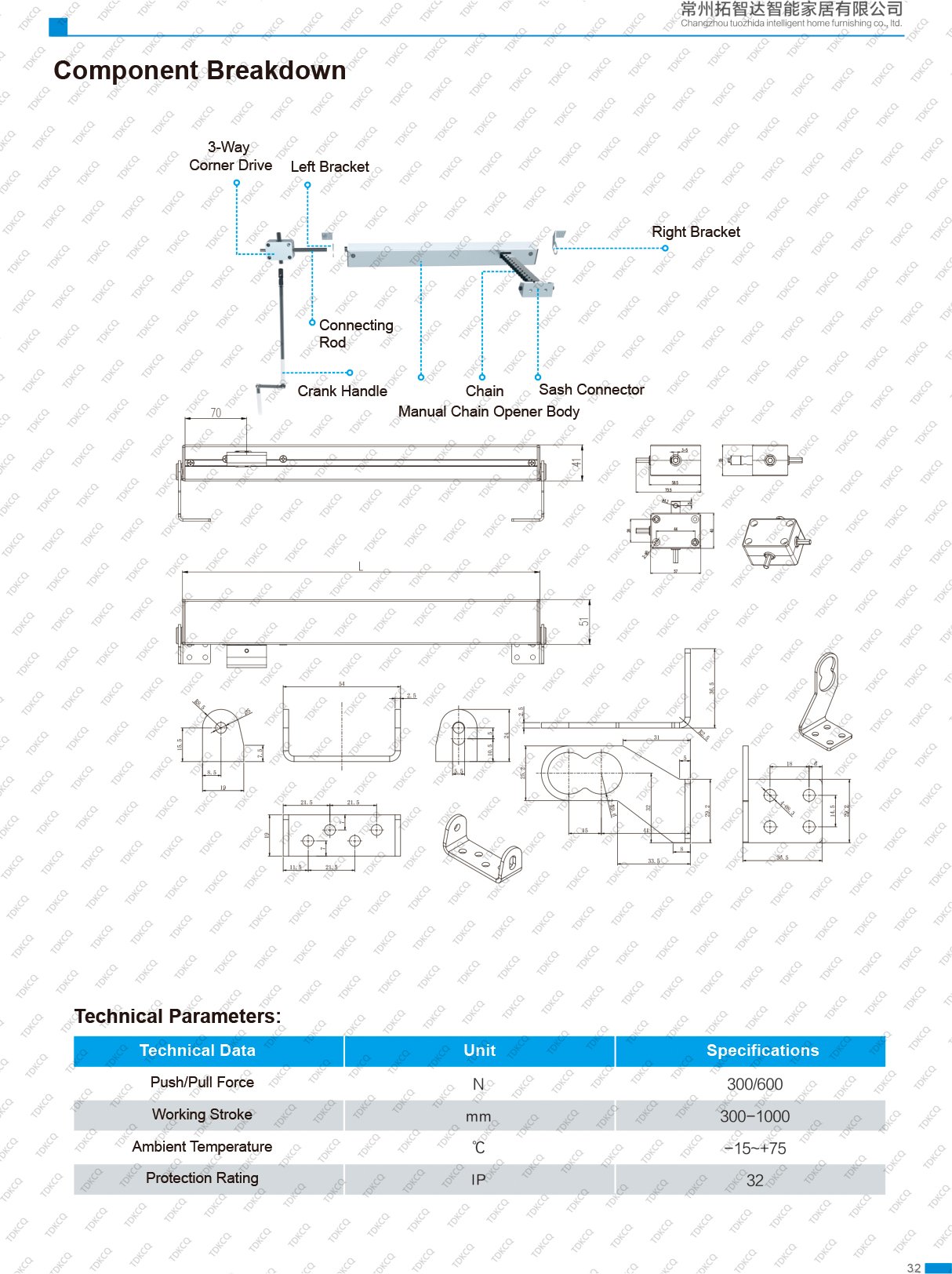

Manual chain winder details and installation reference
Use the product sheets below to review the hand-crank assembly, chain mechanism and installation arrangement. Final mounting positions and chain travel must be checked against the actual window profile.
Manual control for smoke vent and natural ventilation windows
Stairwells & Corridors
Power-free smoke vent and routine ventilation control in circulation spaces.
Factories & Warehouses
Dependable mechanical window operation for industrial facilities.
Schools & Hospitals
Simple hand-crank control with no electrical components or complex servicing.
Commercial Buildings
Manual operation for atriums, offices, shopping malls and roof skylights.
Manual chain winder FAQ
Does a manual chain winder require electricity?
No. It is a fully mechanical hand-cranked window opener and remains available during a power failure.
Which windows are compatible with the manual chain winder?
It can be configured for conventional top-hung, bottom-hung and side-hung smoke vent windows, as well as suitable roof skylights. Final compatibility depends on window geometry and weight.
How does the window stay at the selected opening position?
The gear transmission includes a self-locking structure that holds the chain and window at the selected position against normal wind pressure and gravity.
Can it be used for both smoke exhaust and daily ventilation?
Yes. The same hand-cranked mechanism can provide emergency manual smoke vent opening and routine natural ventilation.
How do I select the correct manual chain winder?
Provide the window type, sash dimensions, sash weight, required opening distance and installation drawing so the chain travel and mounting arrangement can be confirmed.
Need a manual chain winder for your smoke vent windows?
Send the window type, sash dimensions, sash weight, opening distance and installation drawing for a tailored recommendation.
