Automatic Cordless Window Actuator with Solar Charging, App Control & Rain Sensor Auto-Close
Product Overview

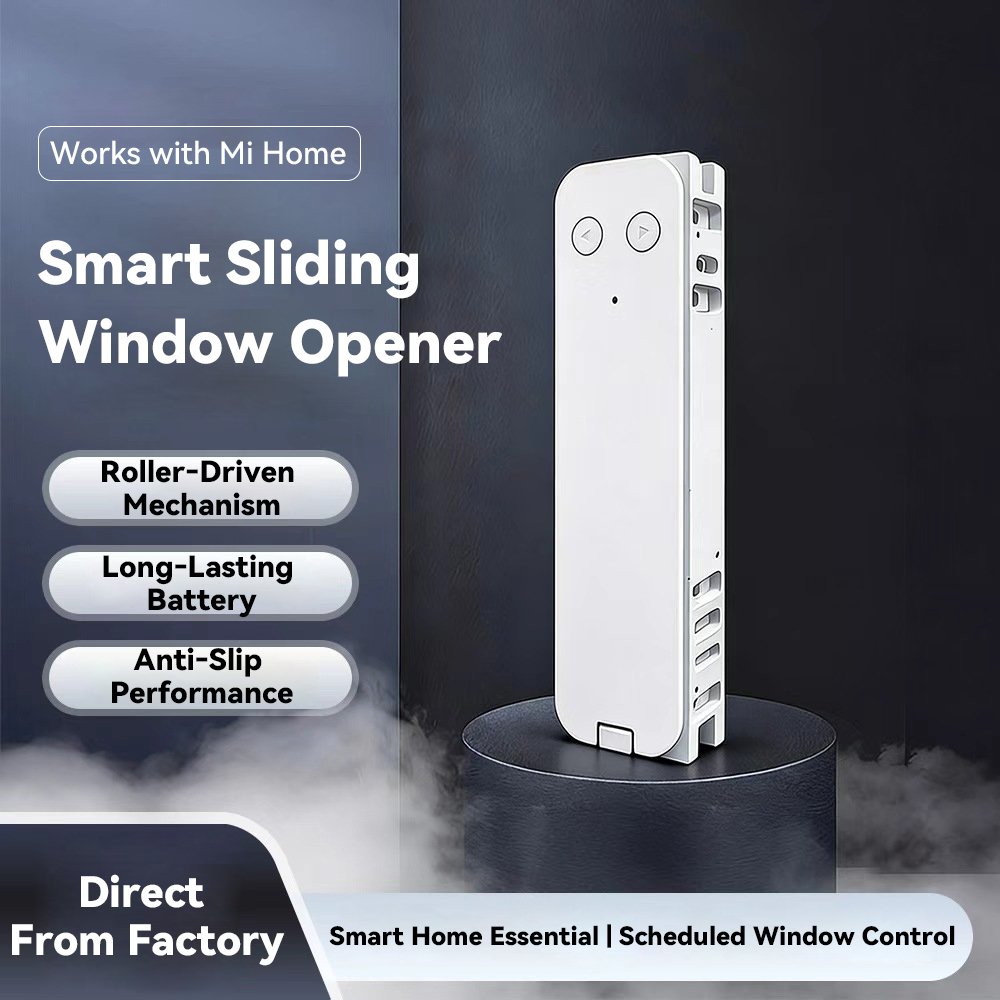

Designed exclusively for horizontal sliding windows, the TDKCQ smart window opener delivers reliable, slip-free automatic window control with zero modifications to your existing window frames. Powered by an innovative rack-and-roller drive system, it operates without mains wiring or wall sockets — built around a rechargeable lithium battery with solar trickle charging for extended runtime.
Ideal for residential homes, apartments and light commercial spaces, it integrates with the Mi Home ecosystem for app control, voice command and remote access, with added rain-sensing auto-close and manual override for full flexibility. It is a simple, non-intrusive solution to upgrade standard sliding windows into smart, automated ventilation systems.
Key Highlights
- Rack-and-roller drive: Consistent traction, no slipping, no window modification required
- 100% cordless: Built-in lithium battery, no wiring or wall socket needed
- Solar supplementary charging: On-board solar panel extends battery life with daylight
- Mi Home app control: Full open / close / pause + precise opening percentage adjustment
- Voice & remote control: Works with XiaoAI speaker; remote access via Xiaomi Bluetooth Gateway (sold separately)
- Rain sensor auto-close: Automatically closes windows when rain is detected
- Dual installation options: Screw mount or no-drill adhesive mount
- Gear clutch design: Seamless switch between electric and manual operation
Drive Technology: Rack & Roller System
Unlike conventional window openers that rely on friction and suffer from slippage under load, this unit uses a precision rack-and-roller traction mechanism for steady, consistent power transfer.
- Adjustable roller pressure to suit different window frame materials
- Smooth, low-noise operation with durable wear-resistant components
- Detachable main unit for easy maintenance and repositioning
Please note: Transparent housing shown in demonstration images is for structural display only. The actual product features a non-transparent exterior.

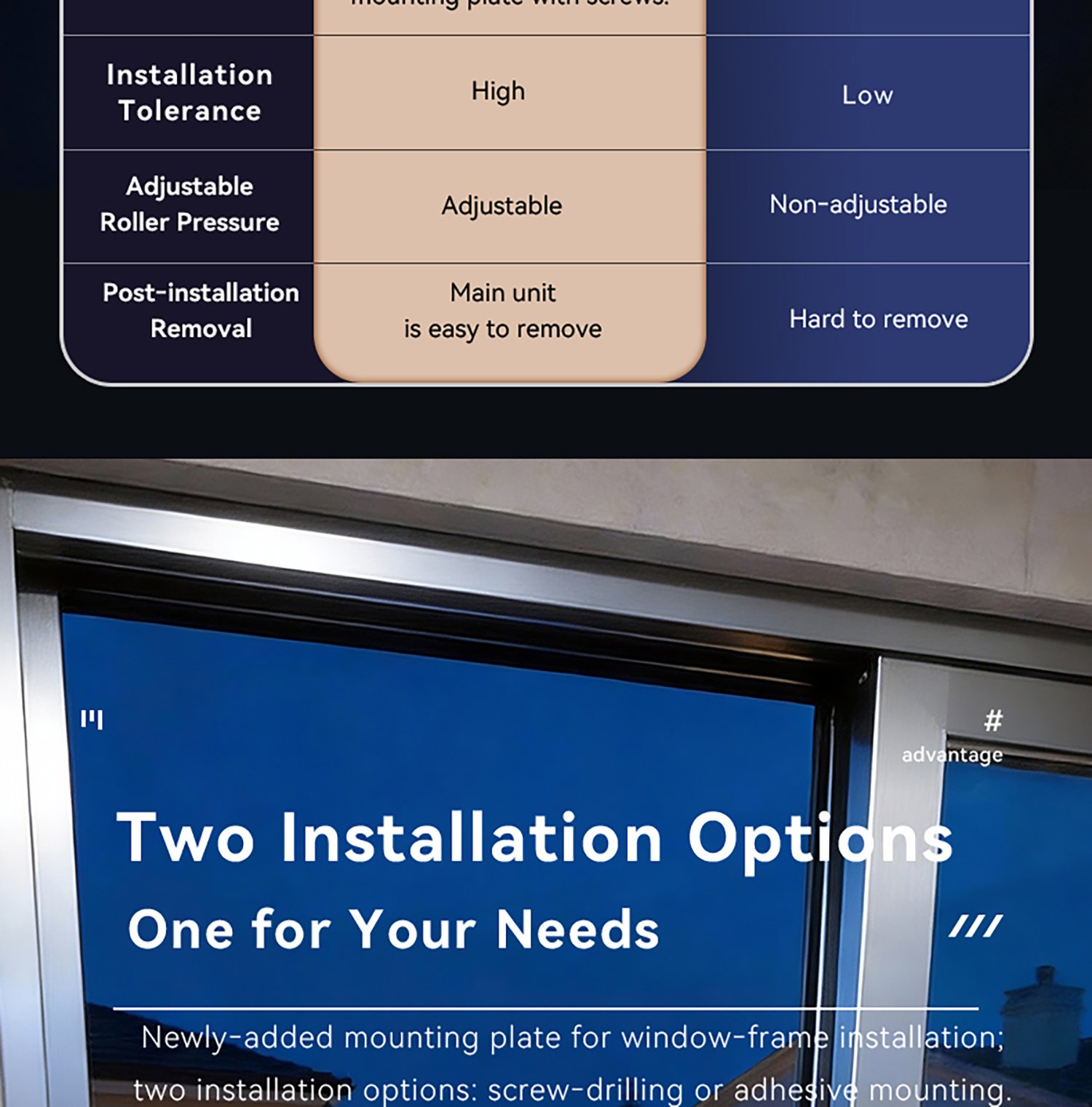

Installation Methods
Two flexible mounting options to suit your window frame and preference:
- Screw Mounting – Drilling required for maximum mechanical stability and long-term use
- No-Drill Adhesive Mounting – Secured with dedicated adhesive, no damage to window frames
The upgraded mounting bracket design improves installation tolerance and allows the main unit to be easily removed for servicing.

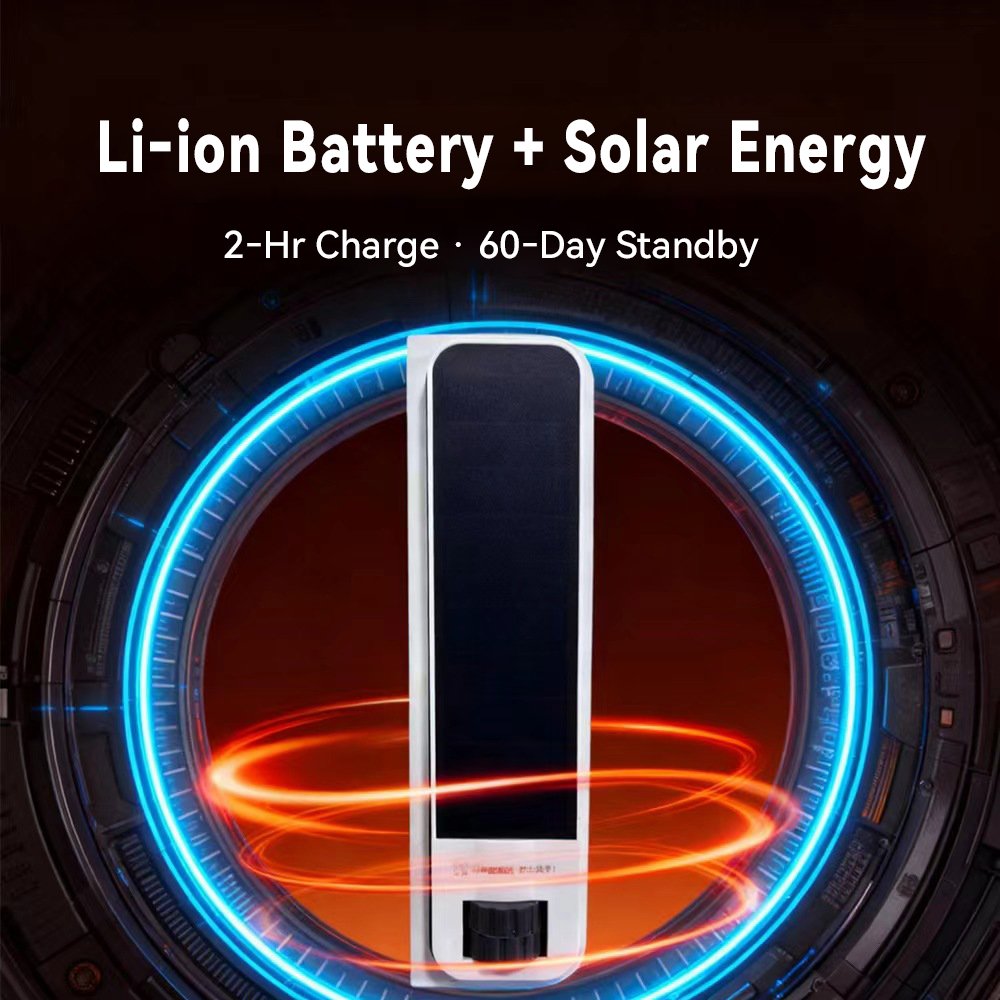

Power & Battery

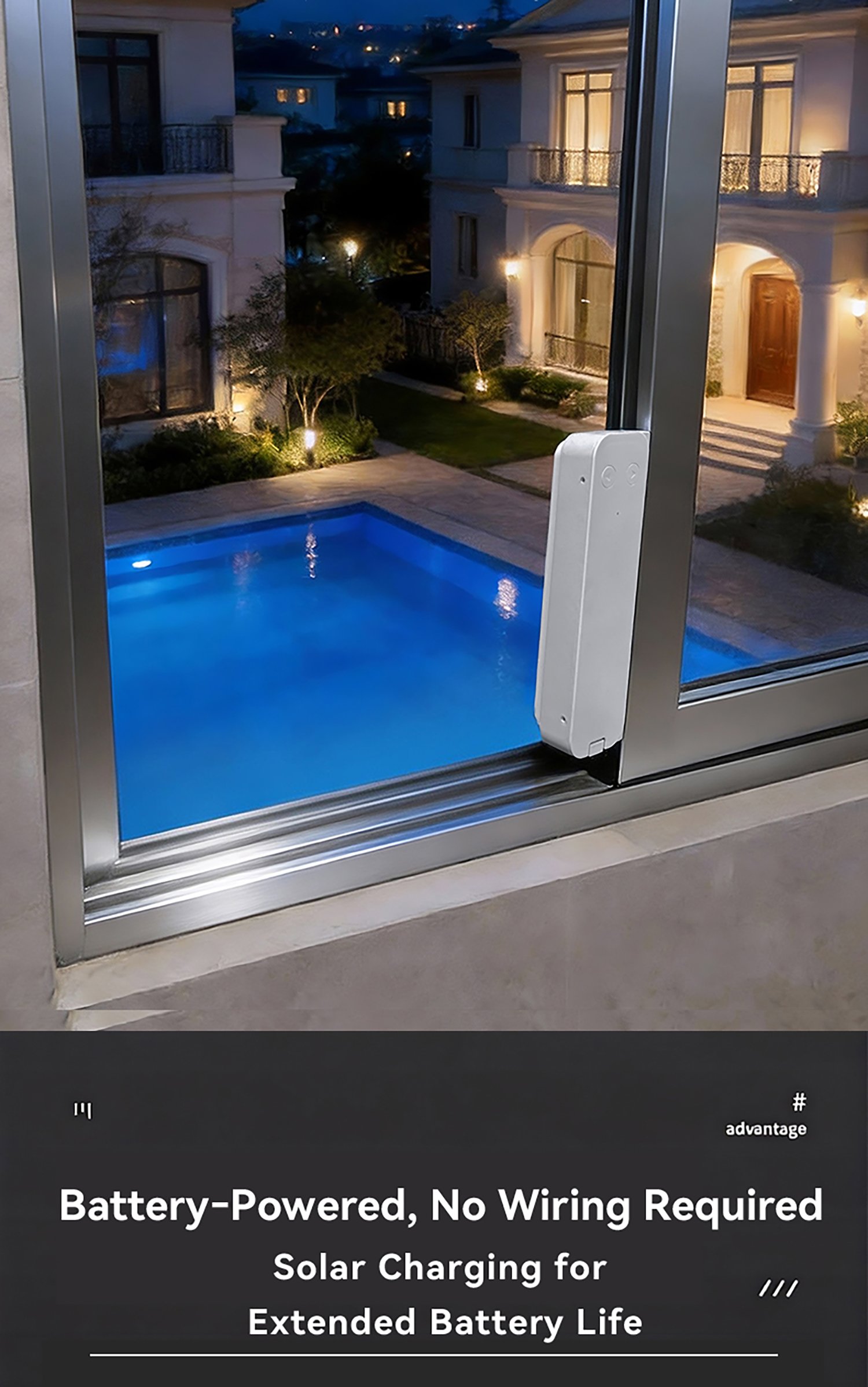

- Built-in rechargeable lithium battery: Eliminates the need for mains wiring, for a clean, wire-free installation
- Solar trickle charging: Integrated solar panel harvests daylight to top up the battery and extend operating time
- USB Type-C charging: 5V-3A Type-C input for direct wired recharging when required
Smart Control Options
1. Mi Home App Control
Manage your windows directly from your smartphone:
- Full open, full close and pause controls
- Precise adjustment of opening percentage (0–100%)
- Custom position presets
2. Voice Control
Works with the XiaoAI Smart Speaker (sold separately) for hands-free voice operation.
Example command: “Open the window to 63%”
3. Remote Access
Remote control from anywhere is available when paired with a Xiaomi Bluetooth Gateway (sold separately).
4. Wireless Remote Control
Includes a dedicated handheld remote for simple one-touch open/close operation, suitable for users of all ages.
Additional Features
- Rain Sensor Auto-Close: Equipped with a rain sensor with a sloped triangular drainage design; triggers automatic window closing when rainfall is detected
- Gear Clutch Mechanism: Allows seamless switching between electric and manual operation — the window sash can be pushed or pulled by hand with no resistance
- Minimalist Low-Profile Design: Slim modern housing that blends with most interior styles
- Premium Silicone Rollers: High-grade silicone drive wheels for quiet, non-slip performance
- Detachable Main Unit: The actuator can be removed from the fixed mounting frame for hassle-free maintenance
Safety notice: Keep hands clear of the drive roller during operation to avoid pinching injury.

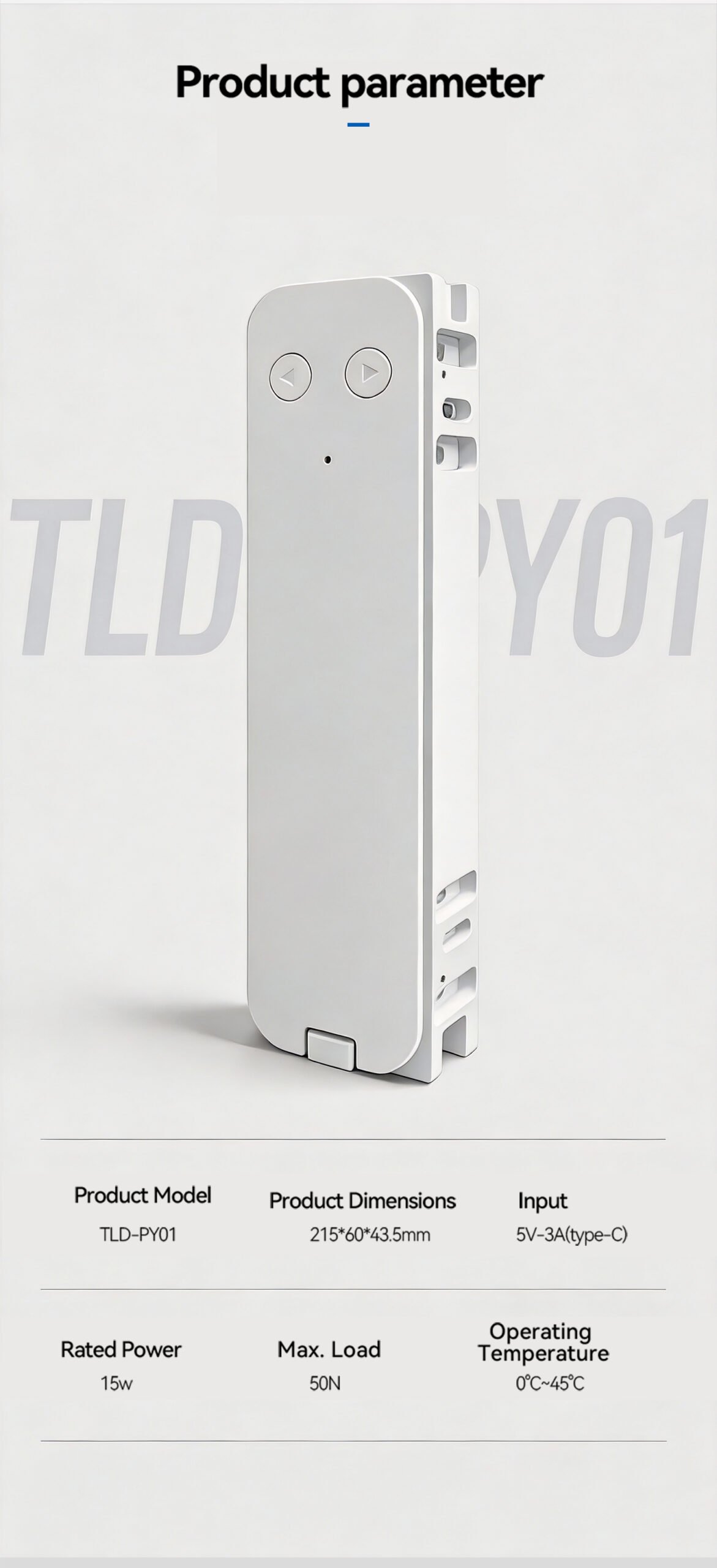

Technical Specifications
表格
| Parameter | Specification |
|---|---|
| Model | TLD-PY01 |
| Dimensions | 215 × 60 × 43.5 mm |
| Input | 5V-3A (USB Type-C) |
| Rated Power | 15 W |
| Max Push / Pull Force | 50 N |
| Operating Temperature | 0°C to 45°C |
| Application | Horizontal sliding windows |
Important Notes & Return Policy
- For windows fitted with insect screens, we recommend fixing the outer sash and operating the inner sash to avoid mechanical interference and keep insects out.
- The included adhesive is sufficient for two installations. Use approximately half the tube per installation to ensure proper curing and correct alignment.
- Allow adequate curing time. For some frame materials, extend curing time to 24 hours and secure with tape if necessary before normal use.
- Always test fit and simulate operation before applying adhesive. We recommend reviewing the installation video for guidance.
- For indoor use only. Do not install on the exterior side of high-rise windows. This product is not waterproof.
- Returns are accepted only for unused, uninstalled items in original packaging. Products installed with adhesive are not eligible for return as they cannot be resold.
